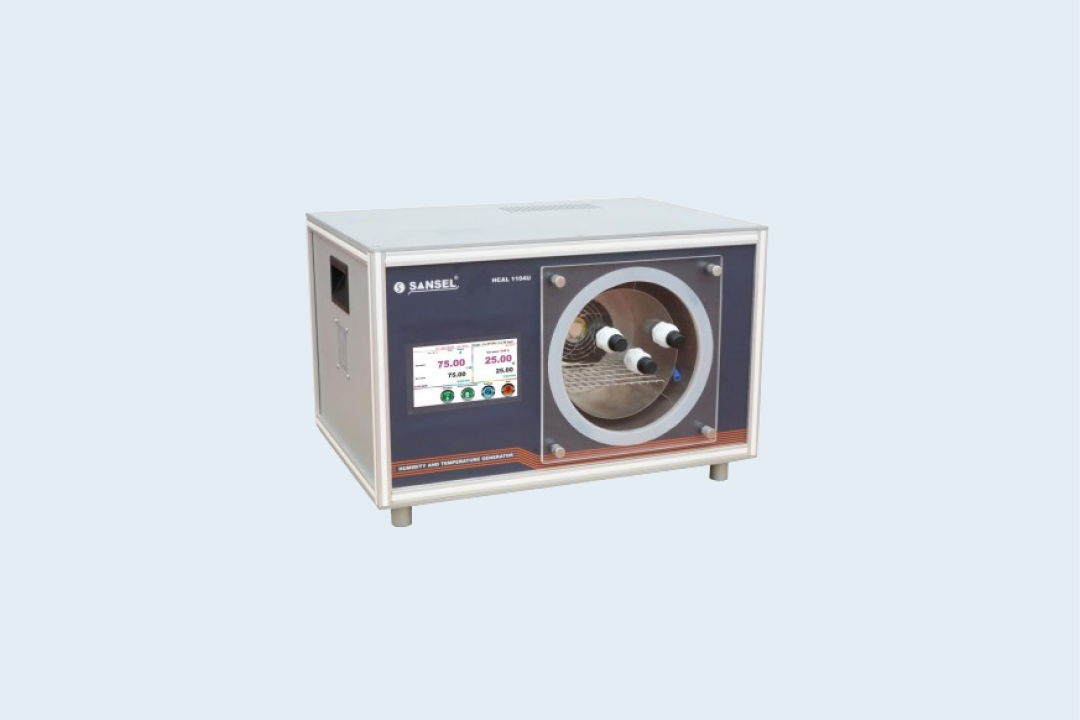

Precision Humidity and Temperature Generator HCAL 1104U
The HCAL 1104U is a precision generator of controlled Humidity and Temperature environment inside the chamber. It has huge volume of chamber size to perform a rapid and easy calibration of multiple portable instruments, sensors, transmitter, data logger of different manufacturers. The HCAL 1104U is to generate range from 5°C to 60°C / 3% RH to 95% RH and Psychometric Calculated Dew point indication range from -30°C to 45°C. It has an advantage of external Humidifier for easy maintenance and refilling of water, Semi portable and onsite transportable.
The HCAL 1104U working in the principle of mixed flow method for generating the Humidity. A desiccant cell is used to De-Humidify the chamber for low Humidity and Humidifier generates high Humidity. A solid state peltier element is used for heating and cooling the chamber. The HCAL 1104U improved version has metrology level performance in terms of Control stability and uniformity gradients.
Specifications
| Model | HCAL 1104U v2 |
|---|---|
| Display | 7” True colour TFT LCD Display with Touch screen |
| Control Range | 5 to 60°C / 3 to 95 % RH |
| Dew Point Temperature Range (Psychometric Calculated) | -30°C to 45°C |
| Psychometric Calculated Indication | Dew / Frost point ( Dp / Fp ), Wet Bulb Temperature ( Tw ), Vapour partial pressure ( E ), Vapour Saturation pressure ( Ew ), Mixing ratio by weight (dry) ( g / kg ) |
| Calculation Method | WMO Method |
| Resolution | 0.01 °C / 0.01% RH |
| Display Stability | Better than ± 0.03 °C / ± 0.15% RH |
| Chamber Stability @25°C ** Temperature | ± 0.1°C, Humidity: ± 0.3 % RH |
| Chamber Uniformity @25°C** Temperature | ± 0.2°C, Humidity: ± 0.5 % RH |
