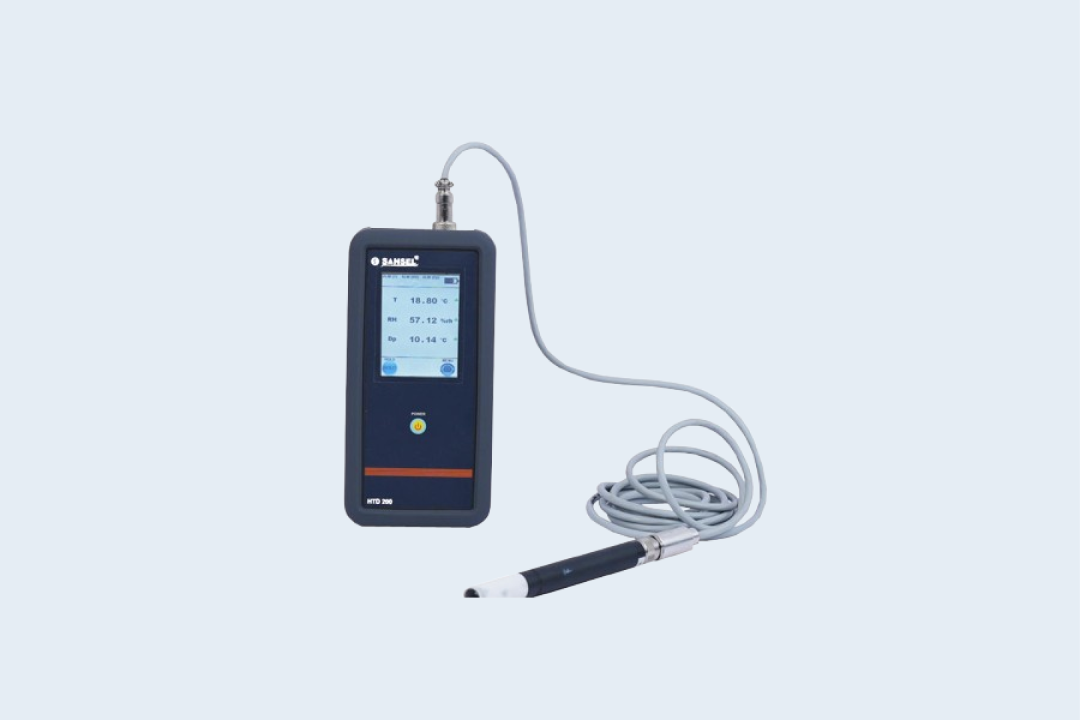

Precision Portable Hygrometer / Datalogger HTD 200
HTD 200 is a Precision handheld relative humidity, Temperature and dew point or frost point Temperature Indicator with data logging facilities to record the live data and optional system interface software is provided to analysis the recorded data in graphical and record format. The HTD 200 is suitable for Reference standard in Calibration laboratories, HVAC applications, manufacturing or storage areas in all Industries with in the Temperature & Humidity range of -40 to 85°C / 0 to 100% RH.
Specifications
| Model | HTD 200 |
|---|---|
| Display | 2.8” True colour TFT display with touch screen |
| Range Temperature | -40 to 85 °C (T), Humidity: 0 to 100% RH (RH) |
| Resolution | 0.01 °C / 0.01 % RH |
| Accuracy | ± 0.2 °C / ±0.8 % RH |
| Psychometric Calculated Indication | Dew / Frost point ( Dp / Fp ) |
| Calculation Method | WMO method |
| Display Refresh Rate | 1 s (typical) |
| Calibration | 5 point lookup table for both Temperature & Humidity |
