Standard Datalogger GMP TP

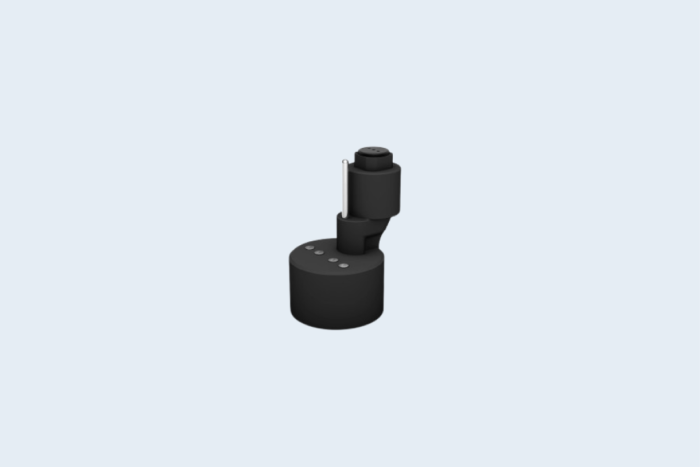

Temperature Data Logger with Rigid Sensor Standard Data Logger GMP TP 0.01 BarA to 5 BarA -40°C to +140°C
Standard data logger for recording pressure and temperature values. Easy to program and install, no data loss during validation process, multiple users can share the same database simultaneously. Factory calibration on users site.
- Collects and stores temperature information in the internal memory

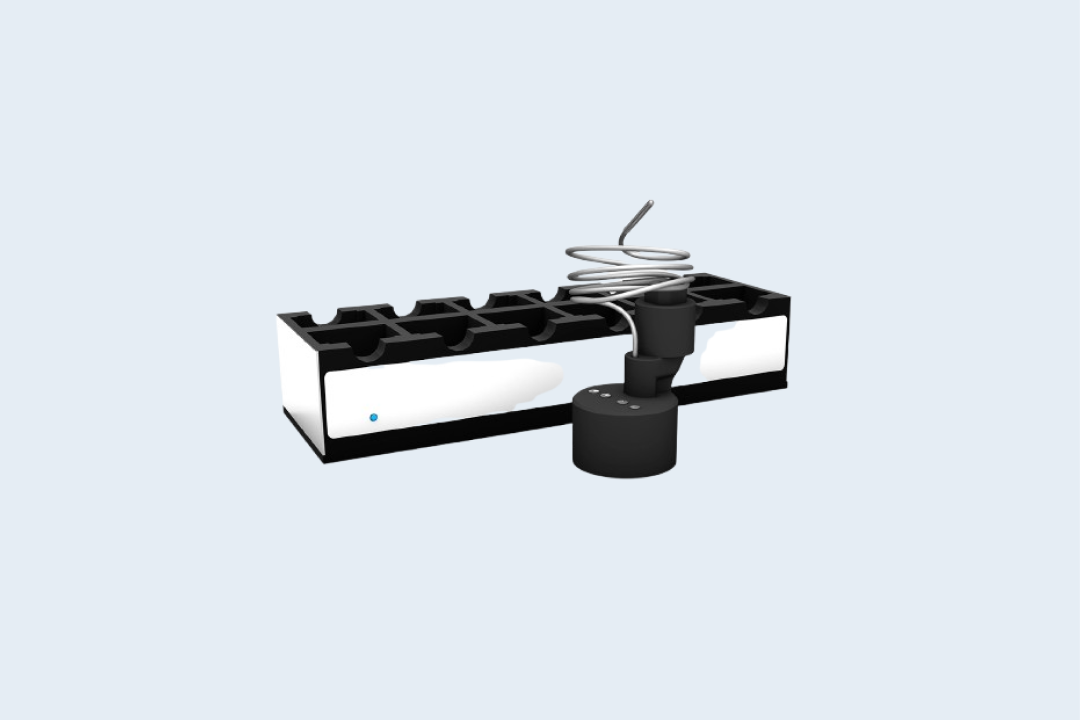

- Recover the data through the docking station using XpertLog® Software
- ITS-90 calibration coefficients are stored in the internal memory
- Complies with FDA 21 CFR Part 11
- Network ready: multiple users, centralized, server database, active directory authentification
- Calibration can be performed on site
Specifications
| Sensor Type | Absolute pressure / Temp: 4 wires PT-100 |
|---|---|
| - rigid | 20 mm (0.8”) |
| - sensor size | 1.5 x 8 mm (0.06 x 0.315”) |
| - cross section | 1.77 mm² (0.0027 inch²) |
| Operating Range Body | 0.01 BarA to 5.0 BarA -40°C to +140°C |
| Operating Range Sensor | -40°C to +140°C |
| Accuracy | ±10 mbar ≤ 3 BarA @ 130°C; ±15 mbar > 3 BarA @ 130°C; ±15 mbar, ≤ 3 BarA @ 23°C; ±30 mbar > 3 BarA @ 23°C; ±0.1°C from -40°C to |
| Resolution | 0.1 mbar; 0.01°C |
| Memory Capacity | 16,000 data points pressure / 16,000 data points temperature |
| Memory Type | non volatile |
| Sampling Rate | 1 sec to 24 hours |
| Internal Clock Drift | 4 sec / 24 h @ 23°C |
