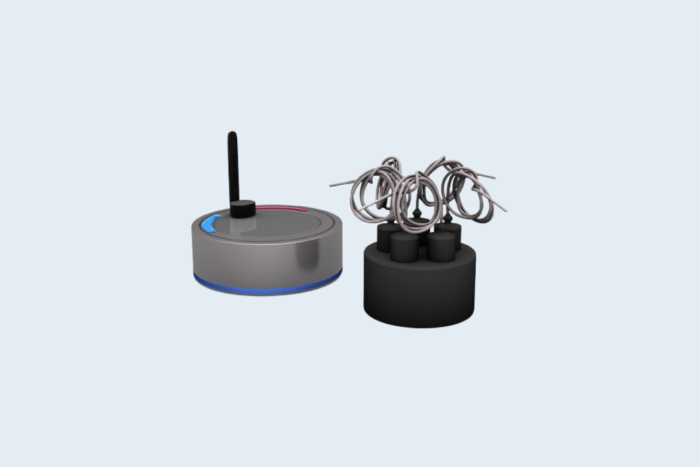

Wireless Datalogger GMP RF 5F
Real Time Wireless Temperature Data Logger with 5 Flexible Sensor Wireless Data Logger GMP RF 5F -90°C to +140°C
Real time temperature data logger with five flexible PT-100 sensors.
- Collects and transmits real time temperature to XpertLog Software
- ITS-90 Calibration coefficients are stored in the internal memory
- Complies with FDA 21 CFR Part 11
- Network ready: multiple users, centralized, server database, active directory authentification
- Calibration can be performed on site
- Can be remotely activated
Specifications
| Sensor Type | 5 x 4 wires PT-100 |
|---|---|
| - flexible | 430 mm (17”) |
| - customized | up to 5000 mm (195”) |
| - sensor size | 1.5 x 8 mm (0.06 x 0.315”) |
| - cross section | 1.77 mm² (0.0027 inch²) |
| Operating Range Body | -90°C to +140°C |
| Operating Range Sensor | -200°C to +200°C |
| Accuracy | ±0.1°C from -90°C to +140°C |
| Resolution | 0.01°C |
| Memory Capacity | 32,000 data points / 6400 data points per channel |
| MemoryType | non volatile |
| Sampling Rate | 2 sec to 24 hours |
| Transmission | simultaneus: maximum 20 loggers, sequential: unlimited |
